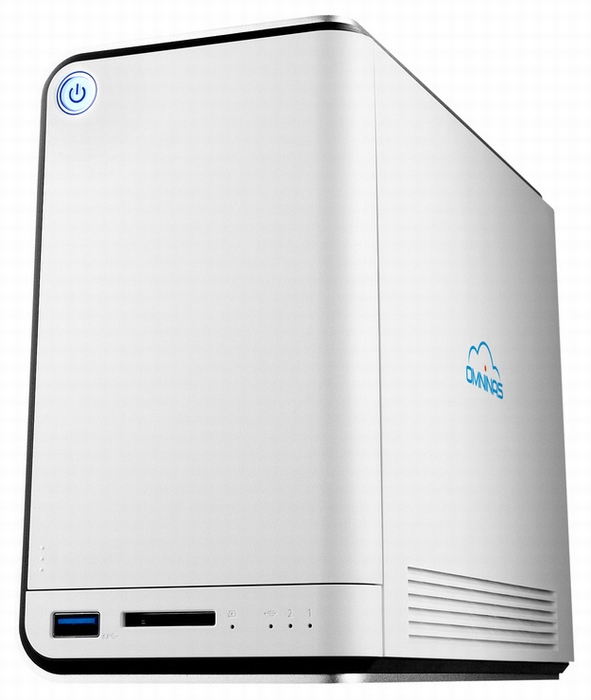

Shuttle OmniNAS KD20
KD20 NAS your own Private Cloud (incl. 250 GB HD)
€ 99.00
Voorraad
Artikelcode: SH-KD20
Specs
Chassis
Robust, stylish 2.5 mm sandblasting aluminum combined with acrylic PMMA
Dimensions: 170 mm (H) x 90 mm (W) x 225 mm (L) = ca. 3.44 litres
Weight: 2.2 kg net (3.1 kg with two hard disks installed) / 2.8 kg gross
Kensington Security Slot at the back panel (also called a K-Slot
or Kensington lock) as a part of an anti-theft system

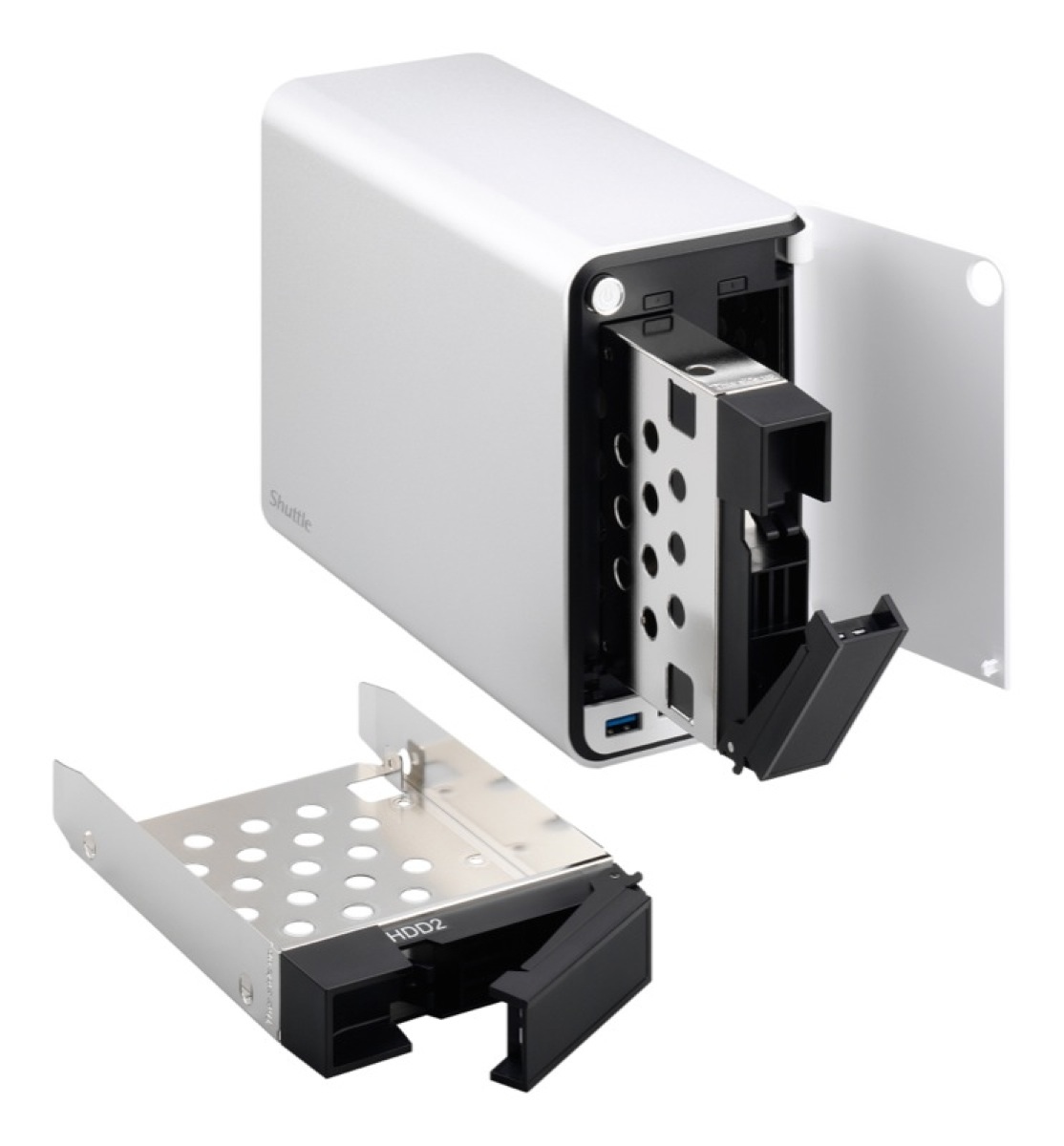

Storage Bays
Two storage bays (storage drives not included)
Supports 6.35 cm (2.5") and 8.9 cm (3.5") drives [3]
Easy hard disk installation in two trays
Appropriate screws are included
Each bay with one hot swap button for RAID 1
Hard disk support and RAID levels
Supports two SATA storage drives each up to 4TB (or more)
Maximum total capacity of 8TB and beyond
Supports 6.35 cm (2.5") and 8.9 cm (3.5") drives [3]
Raid support: single disk, RAID 0, RAID 1 (hot swap), JBOD
Supports hard disk spin-down timer
Supports check/format disk, SMART information report, disk usage status report
Hard disks must support SMART temperature feature with temperature sensor
Connectors
1x Gigabit LAN (RJ45, rear)
1x USB 3.0 (standard A, front), supports Auto-Copy function
2x USB 2.0 (type A, rear)
All USB ports support external devices like hard disks, flash drives,
printers, digital camera, etc. Memory can be shared to local network.
Card Reader
Buillt-in card reader in the front panel
Supports SD, SDHC and SDXC flash memory cards
Supports Auto-Copy function
Buttons
Main power button with status LED
Two Omni Touch Hot Swap buttons (for HDD1, HDD2)
Reset button (hole, rear) for admin passwort reset
LED Indicators
Status LED: dual colour (access/error: blue/red)
HDD1/HDD2 LEDs: dual colour (access/error: blue/red)
USB 3.0 LED: single colour (access: blue)
Card reader LED: single colour (access: blue)
LAN speed LED (10/100 Mbps: green, 1000 Mbps: orange)
LAN Activity LED (access/link: blinking green)
Transfer Speed
Read data - from NAS to workstation: up to 75 MB/s [1]
Write data - from workstation to NAS: up to 55 MB/s [1]
LAN Configuration
Supports Static IP or Auto IP by DHCP server
Networking Services
Samba Server (SMB file sharing)
Apple File Protocol (AFP)
Media Server/DLNA compliant
iTunes Server
Printer Server (supports USB printers)
BT download without PC (scheduled)
External device sharing (via USB or card reader)
NTP support for scheduled time synchronization
APPs for mobile devices
Upload and share files from iOS and Android devices.
(search for the appropriate "OMNINAS" app)
https://play.google.com/store/apps/details?id=com.shuttle.omninas2
itunes.apple.com/nz/app/omninas/id543929833
System Services
Firmware upgrade
Time-Zone settings
Factory reset function
System log report
Built-in Backup functions
Quick Auto Copy for external storage (USB 3.0 or card reader to NAS)
NAS to USB storage backup (scheduled or immediately)
NAS to NAS backup (scheduled or immediately)
CPU / RAM
Processor: PLX NAS 7821, Dual Core ARM 11, 2x 750 MHz
DRAM memory size: 256 MB DDR2
Operating System
Embedded Linux
Power Adapter
External 65 W AC/DC power adapter (fanless)
Input voltage: 100~240 V AC, 50~60 Hz
Automatic AC voltage adjustment
Input current: max. 1.6 A (1.0 A) for 100 V (240 V) input voltage
Output: 19 V DC, max. 3.42 A
DC Connector: 5.5/2.5 mm (outer/inner diameter)
Dimensions: 108 mm x 30 mm x 46.5 mm (without cable)
Cooling fan and temperature control
Ultra-quiet 70 mm cooling fan.
By default the fan is not activated under normal temperature conditions.
The following criteria depicts the system fan behavior dependend on the
internal hard disks temperature:
up to 54 °C: fan is off
55~59 °C: fan rotates at low speed
60~61 °C: fan rotates at middle speed
62 °C and above: system shuts down
The System also shuts down when the system temperature exceeds 65 °C.
Accessories
Quick Installation Guide
AC Power adapter (65 W) with AC power cord (plug depends on region)
Ethernet cable, ca. 150 cm
Driver CDROM with NAS finder software (Windows & Mac) and documentation
DVD with Acronis True Image Personal Backup Software [3]
Screws for hard disk installation
System Requirements
- Workstation OS: MS Windows XP SP3, Mac OS X 10.4, Apple Safari 3.0,
Linux kernel 2.6.x or later
- Smart phone OS: iOS 4.2, Android 2.3 or later
- Browser: MS Internet Explorer 7.0, Firefox 3.x, Google Chrome, Apple Safari 3.0 or later
- Router for Internet connection
Power Consumption
Standby mode: 9 W
Normal operation: 15.5 W
Maximum load: 21 W
Standby Mode
After a certain time of inactivity the system will enter power saving (standby) mode.
This time can be set under: Settings - General - Power Saving Time Setting
You can select a time from 10 min up to 5h.
Environmental Spec
Operating temperature range: 5~35 °C (41~95 °F)
Relative humidity range: 10~90% (non-condensing)
